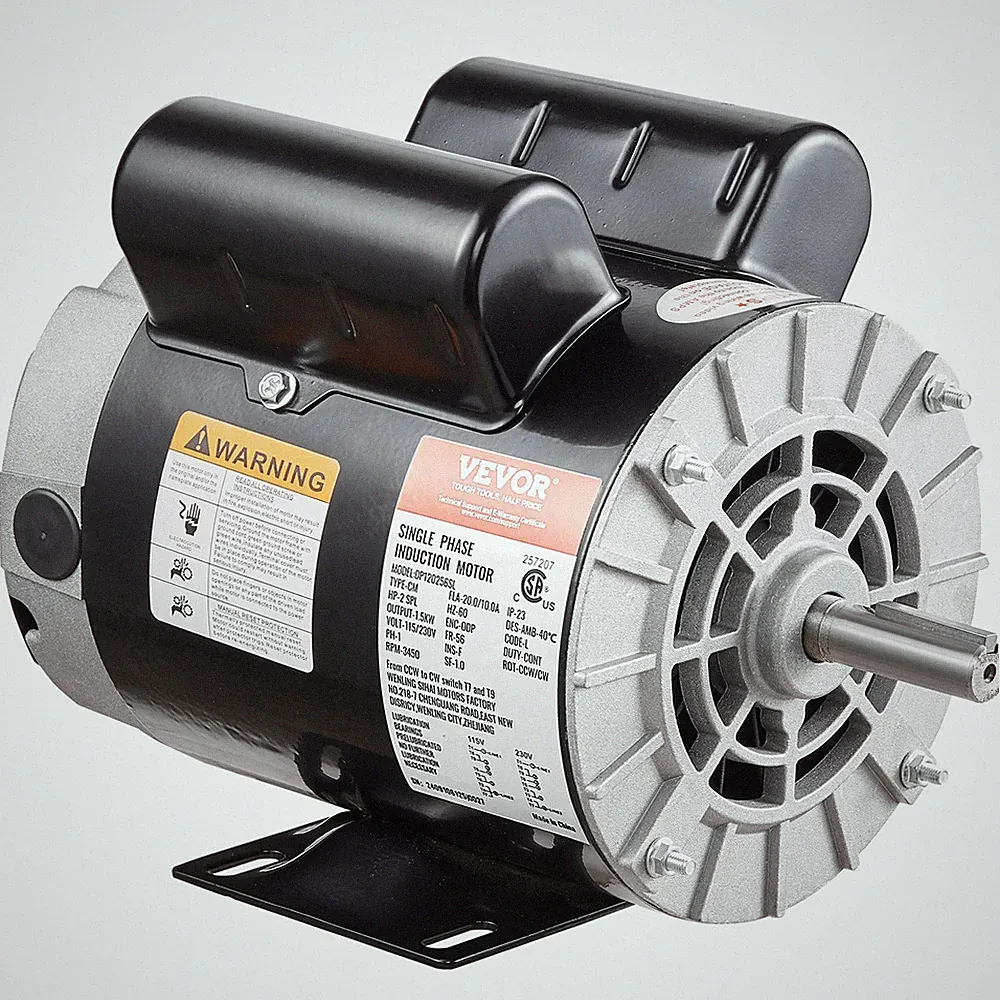

VEVOR 2HP Air Compressor Motor 115/230V 20/10A 3450RPM 56 Frame CW/CCW Rotation
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This VEVOR 2HP Air Compressor Motor is a versatile component operating on either 115V or 230V, at 60Hz. It runs at 3450 RPM with a 56 frame size and features a 5/8" keyed shaft that allows for both CW/CCW rotation. Weighing 25.2 lbs, this motor is designed as a replacement or build-your-own component for air compressors, providing flexibility with its dual voltage capability.
Our take
If you're replacing a motor or building a custom compressor, this VEVOR 2HP motor offers good versatility. The dual voltage compatibility (115V/230V) is a major benefit, allowing it to adapt to various power setups. The ability for both CW/CCW rotation is also a thoughtful feature, simplifying installation depending on your pump's requirements. Running at 3450 RPM, it should provide sufficient speed for air compression tasks. At 25.2 lbs, it's a manageable weight for installation. This is a motor only, so you'll need to pair it with a suitable pump and tank.
Pros & Cons
Pros
- 2HP motor power
- Dual 115V/230V voltage
- CW/CCW rotation capable
- 3450 RPM speed
- 56 frame size for compatibility
Cons
- Motor only, not a complete compressor
- No stated CFM or PSI figures
Specifications
- Brand VEVOR
- Item Model Number DP120256SL
- Voltage 115V / 230V
- Frequency 60HZ
- Current 20 A / 10 A
- SF 1.0
Show all 13 specifications
- Enclosure
- ODP
- Frame Size
- 56
- Shaft Diameter
- 5/8" Keyed Shaft
- Shaft Length
- 1.88"
- Keyway Size
- 0.188"
- Net Weight
- 25.2 lbs / 11.45 kg
- UPC
- 197988766698
